Top and bottom belt driven
Use four belts to complete the upper and lower drive sealing box, ensuring the sealing box is smooth and fast, and is used in lighter and narrower cartons.
Top driven stabile design
Top driven adopts handle knob + folding plates smooth + box position wheel, lockbox position wheel and keep folding plates smooth with handle knob, preventing carton from lifting and making the sealing beautiful.
Height adjustment controller
Manually adjust height and width according to carton size within only 1 minute.

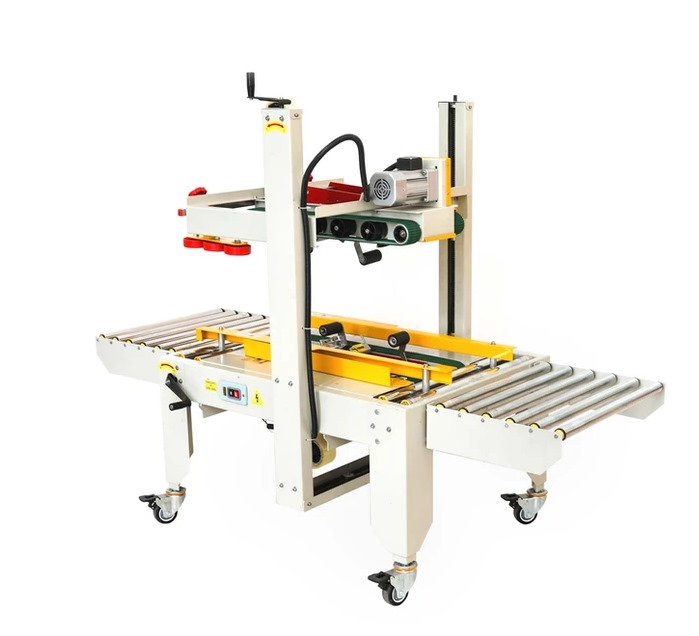

| Model | CS-88 |
| Power | 180W |
| Conveyor Speed | 20m/min |
| Max. Sealing Size | 500x500x600mm |
| Min. Sealing Size | 130x130x180mm |
| Tape Type | BOPP, PVC |
| Tape Size | 36-60mm |
| Weight | 136Kg |
| Machine Dimension | 1500x740x1480mm |
