Gas Griddle

BERJAYA

Share To:

Gas Griddle

Full stainless steel constructed body, hygienic and easy to keep clean.
Slope stainless steel side splashes and 75 mm backsplash.
12 mm thick flat polished steel griddle plate.
Removable stainless steel grease drip pan and a drain hole fixed on the top.
Ferro casting burner of 26,000 Btu each or 25.7 MJ for each 300 mm griddle width.
Equipped with manual control, continuous burning pilot.
Rear gas connection.
Automatic piezo ignitor.
Stand by manual lighting holes.
The airated pilots are attached to each burner located beneath the griddle plate.

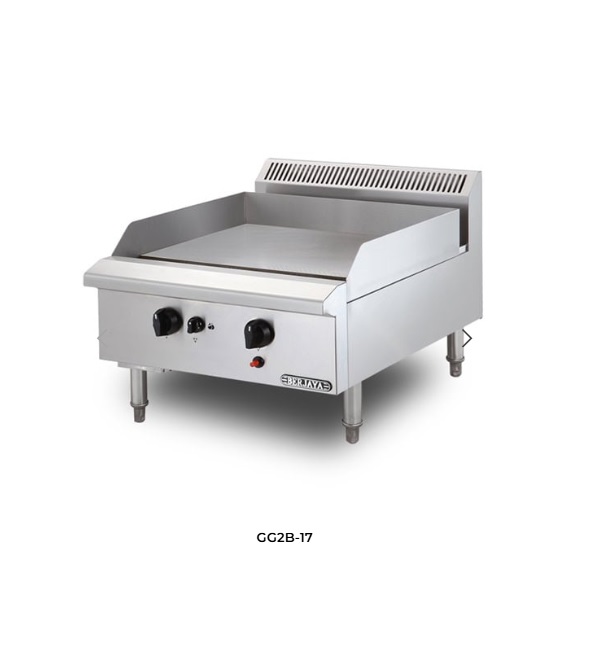

Model	GG2B-17	GG3B-17	GG4B-17	GG2BFS-17	GG3BFS-17	GG4BFS-17
Table Top / Free Standing	Table Top	Table Top	Table Top	Free Standing	Free Standing	Free Standing
Product Dimension (L X W X H) (mm)	600 x 790 x 455	900 x 790 x 455	1200 x 790 x 455	600 x 790 x 1010	900 x 790 x 1010	1200 x 790 x 1010
Packing Dimension (L X W X H) (mm)	677 x 845 x 445	955 x 845 x 445	1250 x 845 x 445	677 x 845 x 445	955 x 845 x 445	1250 x 845 x 445
Weight (kg)	53	74	100	58	81	104
Cooking Surface Dimension (L X W) (mm)	597 x 457	897 x 457	1197 x 457	597 x 457	897 x 457	1197 x 457
Gas Consumption Btu/Hr (MJ/Hr)	52000	78000	104000	52000	78000	104000
