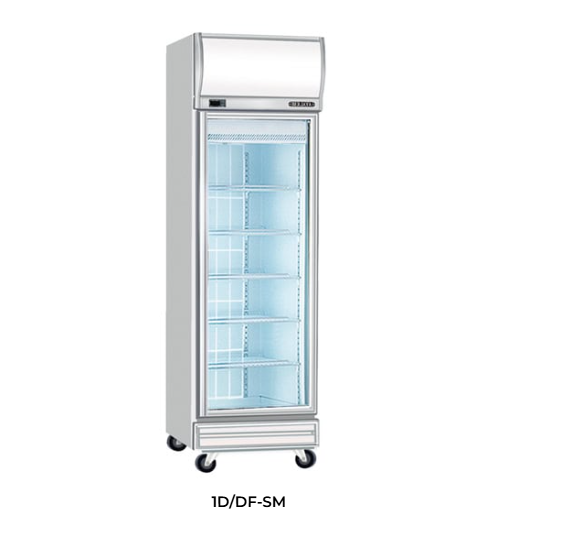

Display Freezer (Glass Door)

BERJAYA

Share To:

Model Nomal Type Expansion Valves	1 Door 1D/DF-SM 1D/DF-SM-EV	2 Door 2D/DF-SM 2D/DF-SM-EV	3 Door 3D/DF-SM 3D/DF-SM-EV
Temperature °C (Celsius)	-20 to -14	-20 to -14	-20 to -14
External Dimension (L x W x H) (mm)	635 x (710+20) x 2060	1260 x (710+20) x 2060	1880 x (710+20) x 2060
Gross Volume (Litres)	400	876	1351
Voltage/ Frequency (V/ Hz)	230V/ 1 / 50Hz	230V/ 1 /50Hz	230V/ 1 / 50Hz
Voltage/ Frequency (V/ Hz)	220V/ 1 / 60Hz	220V/ 1 /60Hz	220V/ 1 / 60Hz
Cooling Capacity – 1D/DF-SM – 1D/DF-SM-EV	– 744 772	– 1373 1112	– 1880 1526
Wattage(W) – 1D/DF-SM – 1D/DF-SM-EV	– 766 – 847 856 – 946	– 1321 – 146 1412 – 1561	– 1890 – 2089 1849 – 2043
Ampere (A) – 1D/DF-SM – 1D/DF-SM-EV	– 4.3 – 4.8 3.9 – 4.3	– 4.3 – 4.8 6.2 – 6.9	– 9.3 – 10.3 8.7 – 9.5
Energy Consumption (kw/ 24h)	18.7 – 20.7	31.2 – 34.5	44.9 – 49.6
Refrigerant	R404a / R290 is available	R404a / R290 is available	R404a / R290 is available
PVC Coated Shelving	5	10	15
Auto Door Lock	Yes	Yes	Yes
Weight (kg)	113	199	279
