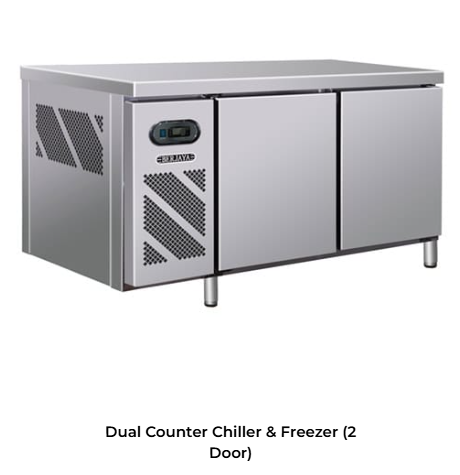

Dual Counter Chiller & Freezer

BERJAYA

Share To:

Features

- High-density Cyclo-isopentane Polyurethane insulated body saves energy.
- Insulated partition between left freezer and right chiller compartment ensures temperature integrity of each product zone.
- Refrigeration system protected from corrosion by urethane-treated evaporator coil.
- Effective counter – balanced weight system self-closing door provides smooth, even, positive closure.
- Environmentally friendly refrigerant (CFC and HCFC Free) R134a and R404a

MODEL		2 Door – 4′ BS 2DCF4/Z	2 Door – 5′ BS 2DCF5/Z	2 Door – 6′ BS 2DCF6/Z	3 Door – 7′ BS 3D2C1F7/Z	3 Door – 8′ BS 3D2C1F8/Z
Temperature °C (celsius)	Chiller	+1 to +6	+1 to +6	+1 to +6	+1 to +6	+1 to +6
Temperature °C (celsius)	Freezer	-20 to -14	-20 to -14	-20 to -14	-20 to -14	-20 to -14
External Dimension (L x W x H) (mm)		1200 x 760 x 840	1500 x 760 x 840	1800 x 760 x 840	2100 x 760 x 840	2400 x 760 x 840
Gross Volume (Litres)	Chiller	127	178	230	183	224
Gross Volume (Litres)	Freezer	127	178	230	375	445
Voltage / Frequency (V/Hz)		230v / 1 / 50Hz 220v / 1 / 60Hz	230v / 1 / 50Hz 220v / 1 / 60Hz	230v / 1 / 50Hz 220v / 1 / 60Hz	230v / 1 / 50Hz 220v / 1 / 60Hz	230v / 1 / 50Hz 220v / 1 / 60Hz
Cooling Capacity (W)		362	415	415	680	680
Wattage (W)		371 – 409	418 – 462	456 – 504	462 – 510	474 – 522
Ampere(A)		2.5 – 2.7	2.8 – 3.2	3.0 – 3.4	3.1 – 3.5	3.3 – 3.7
Refrigerant		R404a	R404a	R404a	R404a	R404a
Defrost System		Electric Heater	Electric Heater	Electric Heater	Electric Heater	Electric Heater
PVC Coated Shelving		4	4	4	6	6
Weight (kg)		88	107	119	141	151
