Dual Upright Chiller Freezer

BERJAYA

Share To:

Features

- High-density Cyclo-isopentane Polyurethane insulated body saves energy.
- Insulated partition between left freezer and right chiller compartment ensures temperature integrity of each product zone.
- Refrigeration system protected from corrosion by urethane-treated evaporator coil.
- Effective counter – balanced weight system self-closing door provides smooth, even, positive closure.
- Environmentally friendly refrigerant (CFC and HCFC Free) R134a and R404a.

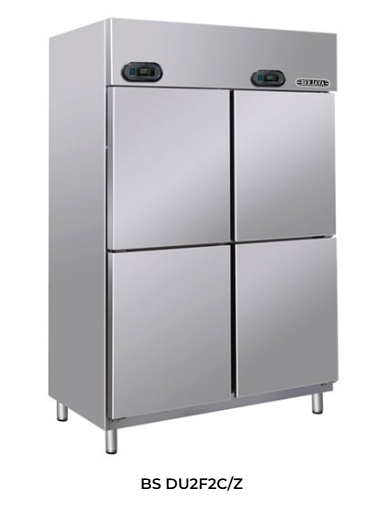

Model		4 Door BS DU2F2C/Z	6 Door BS DU4C2F/Z	6 Door BS DU4F2C/Z
Chiller / Freezer		2 Door Chiller & 2 Door Freezer	4 Door Chiller & 2 Door Freezer	2 Door Chiller & 4 Door Freezer
Temperature°C (celsius)	Chiller	+1 to +6	+1 to +6	+1 to +6
Temperature°C (celsius)	Freezer	-20 to -14	-20 to -14	-20 to -14
External Dimension (L x W x H) (mm)		1300 x 770 x 2060	1950 x 770 x 2060	1950 x 770 x 2060
Gross Volume (Litres)	Chiller	540	1041	540
Gross Volume (Litres)	Freezer	473	540	1041
Voltage/Frequency (V/ Hz)		230v / 1 / 50Hz	230v / 1 / 50Hz	230v / 1 / 50Hz
Voltage/Frequency (V/ Hz)		220v / 1 / 60Hz	220v / 1 / 60Hz	220v / 1 / 60Hz
Cooling Capacity (W)	Chiller	522	792	581 / 522
Cooling Capacity (W)	Freezer	680	680	876
Wattage (W)	Chiller	352 – 389	480 – 530	353 – 390
Wattage (W)	Freezer	567 – 627	581 – 642	713 – 788
Ampere (A)	Chiller	2.3 – 2.6	3.1 – 3.4	2.4 – 2.6
Ampere (A)	Freezer	3.6 – 4.0	3.8 – 4.2	3.3 – 3.7
Energy Consumption (kw/24h)	Chiller	4.1 – 4.5	6.4 – 7.0	4.0 – 4.4
Energy Consumption (kw/24h)	Freezer	10 – 11	11.6 – 12.8	14.4 – 16.0
Refrigerant	Chiller	R134a	R134a	R134a
Refrigerant	Freezer	R404a	R404a	R404a
Defrost System		Forced Air Circulation / Electric Heater	Forced Air Circulation / Electric Heater	Forced Air Circulation / Electric Heater
PVC Coated Shelving		8	12	12
Weight (kg)		182	250	266
